A Guide to How a Trolling Motor Works

A trolling motor is a piece of equipment for anglers and boaters who value quiet, precise, and efficient movement through the water. Unlike main propulsion engines, which are designed for speed and long-distance travel, a trolling motor is built for control, stealth, and maneuverability—especially in fishing situations where subtle movement makes the difference between catching and scaring away fish.

This guide explains how trolling motors work, their components, types, power systems, controls, and maintenance—all in clear detail.

1. What Is a Trolling Motor?

A trolling motor is a self-contained electric motor mounted on the bow, transom, or sometimes on a specialized bracket of a boat. It includes a propeller, shaft, and control system, and runs on battery power rather than gasoline.

Its purpose is to troll—that is, to move the boat slowly and quietly through the water while fishing. This allows anglers to maintain a consistent speed and direction without spooking fish or creating excessive noise and turbulence.

While gasoline outboard motors are noisy and less responsive at low speeds, trolling motors deliver precise thrust control, enabling anglers to navigate into tight spots, counteract wind or current, and hold position near a promising fishing area.

2. Main Components of a Trolling Motor

Understanding how a trolling motor works starts with knowing its major parts and their functions.

a. Electric Motor (Power Head)

The electric motor, often called the power head, is the heart of the system. It converts electrical energy from the battery into mechanical energy that spins the propeller.

It’s typically sealed in a watertight housing to prevent corrosion.
Inside, the motor uses permanent magnets and armature windings to generate torque.
The housing may also include the control electronics, steering motor, and cooling systems.

Modern trolling motors use brushless motors for greater efficiency, less heat, and longer life compared to older brushed models.

b. Propeller

The propeller is attached to the motor’s drive shaft and is responsible for generating thrust.

Most trolling motor props have 2 or 3 blades optimized for efficiency and weed resistance.
The blades are designed to produce thrust without cavitation (formation of air bubbles that reduce performance).
Prop shape and pitch affect speed, torque, and battery consumption.

c. Shaft

The shaft connects the submerged motor to the control head or mounting bracket.

It’s made of composite or fiberglass for strength and flexibility.
The length of the shaft depends on the boat’s size and transom/bow height.
The shaft must be long enough to keep the propeller submerged in choppy water but not so long that it drags or hits obstacles.

d. Mounting Bracket

The mount secures the trolling motor to the boat. There are several designs:

Transom mounts attach to the back of the boat, usually controlled by a tiller handle.
Bow mounts are placed at the front of the boat for superior control and are often used with foot pedals or remote systems.
Engine mounts (less common) attach directly to the outboard motor’s anti-ventilation plate.

e. Controls

The control system allows the operator to steer, adjust speed, and sometimes even anchor the boat automatically.
Common control methods include:

Tiller handle – simple hand-steering with speed dial.
Foot pedal – allows hands-free operation while fishing.
Wireless remote or Bluetooth app – advanced systems that let you steer or anchor using GPS.

3. How the Trolling Motor Works: Step-by-Step

Here’s how a trolling motor converts stored battery energy into quiet propulsion:

Power Supply: The trolling motor draws direct current (DC) from one or more deep-cycle marine batteries—commonly 12V, 24V, or 36V systems depending on the model’s power rating.
Current Flow: When the control (pedal, tiller, or remote) is activated, current flows from the battery to the motor.
Motor Activation: Inside the sealed power head, electricity passes through coils (the armature windings) surrounded by permanent magnets. This interaction creates a rotating magnetic field.
Shaft Rotation: The magnetic field turns the rotor, which spins the drive shaft connected to the propeller.
Thrust Generation: The propeller pushes water backward, propelling the boat forward (Newton’s Third Law: for every action, there is an equal and opposite reaction).
Speed and Direction Control: By adjusting voltage or current, the operator changes motor speed. Reversing polarity changes the direction of rotation, enabling forward or reverse movement.
Steering: On manual models, the motor housing can rotate to steer the boat. On electric-steer or GPS models, servomotors automatically adjust the direction.

The result is smooth, quiet, and responsive movement, allowing the operator to position the boat precisely over target fishing zones.

4. Power Ratings and Battery Systems

Trolling motor power is measured in pounds of thrust—not horsepower. The higher the thrust, the more powerful the motor and the heavier the boat it can move.
Typical thrust ratings:

30–45 lbs: Small boats, kayaks, and canoes.
55–80 lbs: Medium-sized fishing boats.
100+ lbs: Large bass or pontoon boats.

Each 12 volts of battery power generally supports 30–40 lbs of thrust.
So, a 24V motor usually provides around 80 lbs, while a 36V system can exceed 100 lbs.

Deep-cycle batteries are used because they are designed for slow, steady energy output over long periods (unlike car batteries, which deliver quick bursts).

Some modern trolling motors include built-in battery indicators or even smart power management systems to prevent over-discharge.

5. Types of Trolling Motors

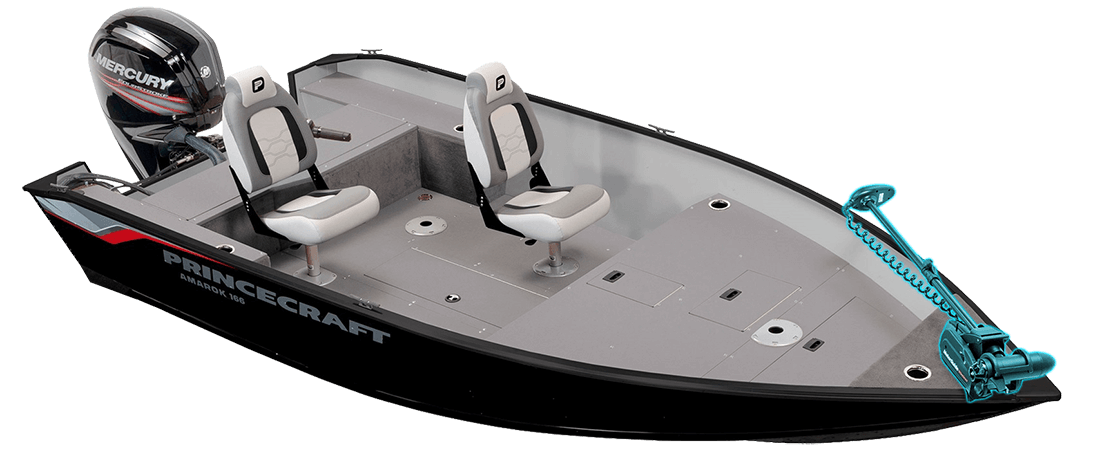

a. Bow-Mount Trolling Motors

Mounted at the front, these provide the best control for anglers since the pull action steers the boat more precisely.
Advantages:

Better maneuverability.
Compatible with advanced features (GPS, autopilot).
Ideal for serious fishing.

b. Transom-Mount Trolling Motors

Attached to the stern (rear), these are simpler and more affordable.
Advantages:

Easy to install.
Good for small boats, canoes, and inflatables.
Controlled by a hand tiller.

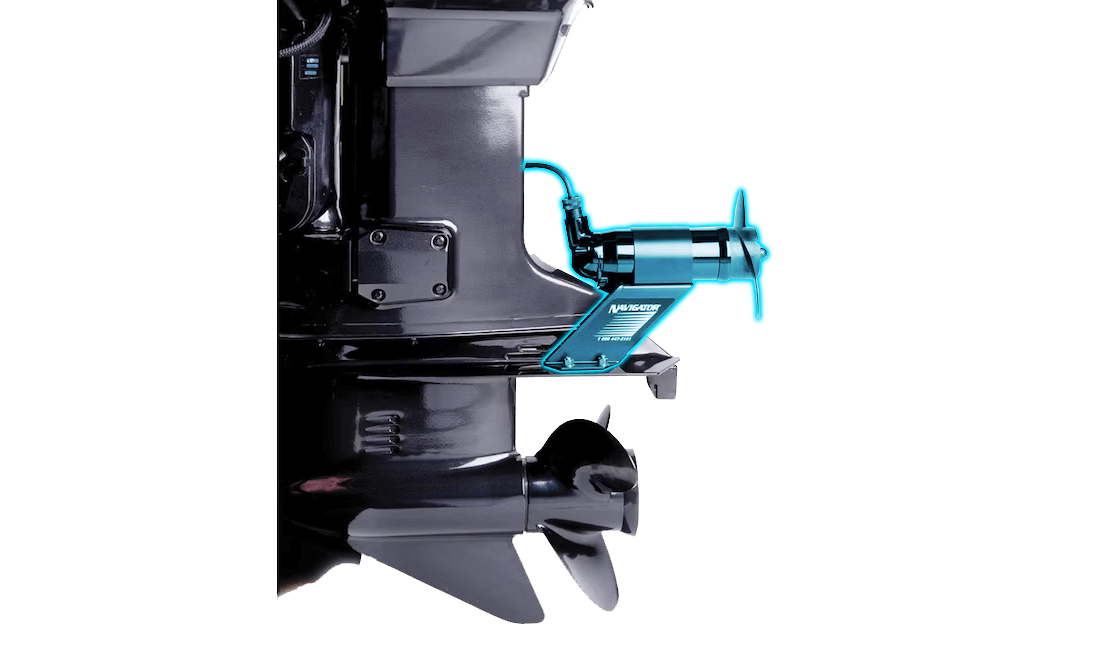

c. Engine-Mount Trolling Motors

Mounted on the outboard’s cavitation plate, these work with existing steering systems.
Advantages:

Clean, unobtrusive setup.
Great for boats without space on the bow or transom.
However, they offer less precise control than dedicated bow mounts.

6. Advanced Features in Modern Trolling Motors

Technology has greatly enhanced trolling motors in recent years. Key innovations include:

GPS Anchoring (“Spot-Lock”): Uses satellite positioning to hold the boat in a fixed spot automatically.
Autopilot and Route Recording: Lets you retrace fishing paths or follow waypoints hands-free.
Sonar Integration: Some models integrate with fish finders for real-time underwater mapping.
Variable Speed Controllers (PWM): Pulse Width Modulation delivers smooth power instead of simple on/off bursts, improving efficiency.
Wireless and Bluetooth Control: Operate via smartphone or remote without physical contact.

These features make modern trolling motors highly intelligent, efficient, and user-friendly tools for both casual and professional anglers.

7. Maintenance and Care

Proper maintenance extends the life of a trolling motor and ensures reliable operation.

Rinse with fresh water after use in saltwater to prevent corrosion.
Inspect propeller for weeds, fishing line, or debris.
Check wiring and terminals for corrosion or loose connections.
Lubricate moving parts as recommended by the manufacturer.
Store batteries properly—charged and in a cool, dry place.

Avoid overloading the motor or running it out of water, as this can overheat the system.

8. Advantages of Using a Trolling Motor

Silent Operation: Doesn’t scare fish, ideal for stealthy approaches.
Instant Control: Precise steering and variable speed adjustment.
Environmentally Friendly: No emissions or fuel spills.
Low Maintenance: Fewer moving parts than gasoline engines.
Versatility: Suitable for freshwater, saltwater, kayaks, and pontoons.
